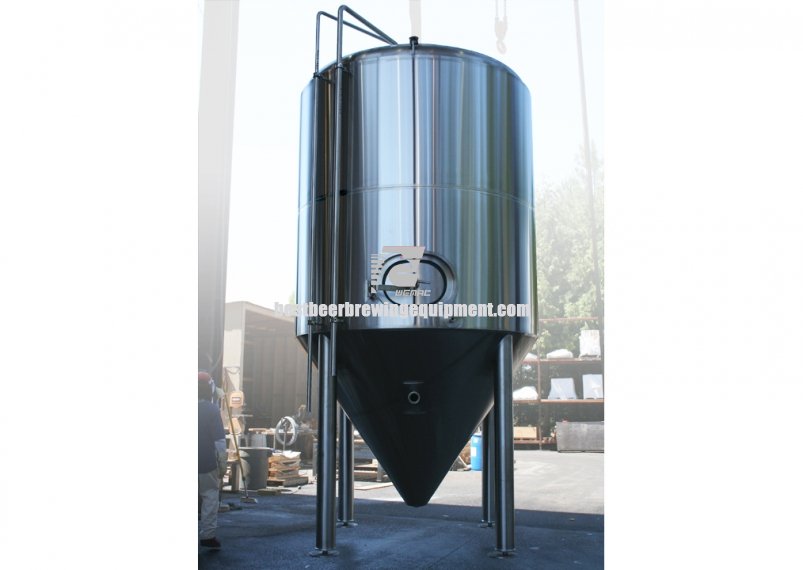

140BBL stainless steel beer fermentation tank

140BBL stainless steel beer fermentation tank technical parameter

Total capacity: 175BBL  effective capacity:140BBL
Note: 1hl=100liter; 1Gallon=3.7854liter; 1BBL(Barrel ) =117Liter
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dish head,cylinder,60 degree cone bottom(adjustable);
Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm
Withstand voltage of tank is 4bar;
Tank equip with lifting leg,Electromagnetic valve or mechanical pressure regulating valve,manhole(top or side),
sample valve,temperature sensor, adjustable leg,Rotating  beer mouth, discharging outlet.CO2 outlet,coolant inlet and outlet,
CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge.
Option:Dry hop mouth,CO2 filling device With titanium rod distributor;level gauge

140BBL stainless steel beer fermentation tankcharacteristics

◆100% TIG welding with pure argon gas shield；
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,
   no material residue and easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
◆3D technology application make customers know tank from different angles.
