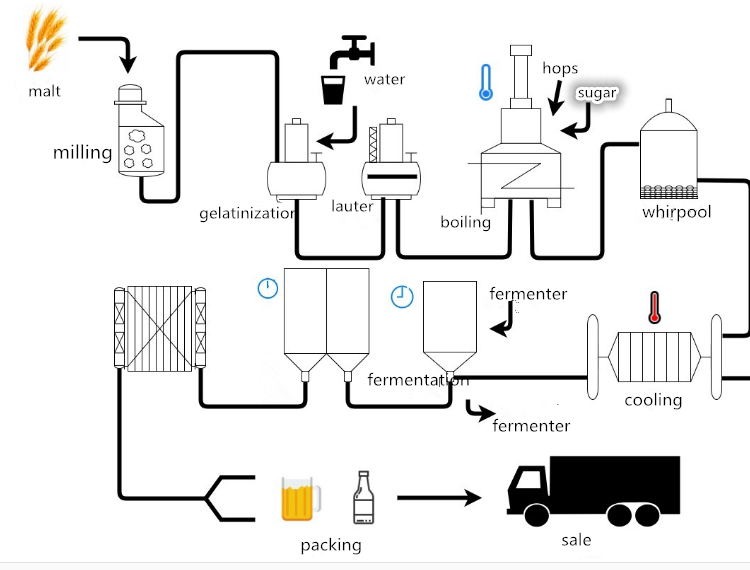

How to make craft beer-Equipment used in brewing
| Code | Name | No. | Component |
| 1 | Malt milling system | 1 | Malt milling machine |
| 2 | Mash system | 1 | Mash/kettle tun |
| 2 | Lauter/whirlpool tun | ||
| 3 | Hot liquor tank | ||
| 4 | Plate heat exchanger | ||
| 5 | Wort oxygenator | ||
| 6 | Yeast addition tank | ||
| 7 | Operation platform | ||
| 8 | Wort pump | ||
| 9 | Hot water pump | ||
| 3 | Fermentation system | 1 | Fermenter |
| 2 | Mixing tank | ||
| 3 | PRV | ||
| 4 | Vent valve | ||
| 4 | Cleaning system | 1 | Mobile cleaning cart |
| 5 | Cooling system | 1 | Chiller |
| 2 | Glycol water tank | ||
| 3 | Ice water pump | ||
| 6 | Electrical System | 1 | Fermentation auto control |
| 2 | Switchboard | ||
| 3 | Fermentation control solenoid valve | ||
| 4 | Temperature Sensor | ||
| 5 | Wire and Cable | ||
| 6 | Threading tube | ||
| 7 | Filling system | 1 | Bottle rinsing machine |
| 2 | Linear filling and capping machine | ||
| 3 | Linear sticker labeling machine | ||
| 4 | Conveyor system | ||
| 8 | Steam system | 1 | Electric steam boiler |
| 9 | Pipeline accessories | 1 | Mash, CIP, water pipeline |
| 2 | Glycol water pipeline | ||
| 3 | Steam pipeline | ||
| 4 | Air compression pipeline | ||
| 5 | Food grade hose | ||
| 6 | Other |

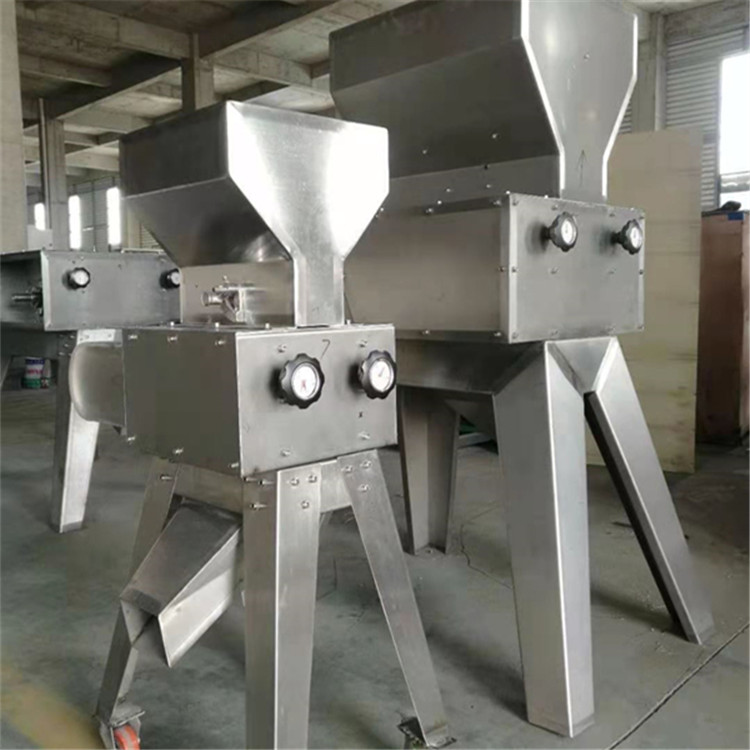

How to make craft beer-malt milling system
The counter roll malt crusher is suitable for small and medium-sized beer equipment. Malt pulverizers are divided into dry pulverizers and wet pulverizers. Generally, small and medium-sized beer equipment adopts dry pulverizers, and wet pulverizers are suitable for large breweries.

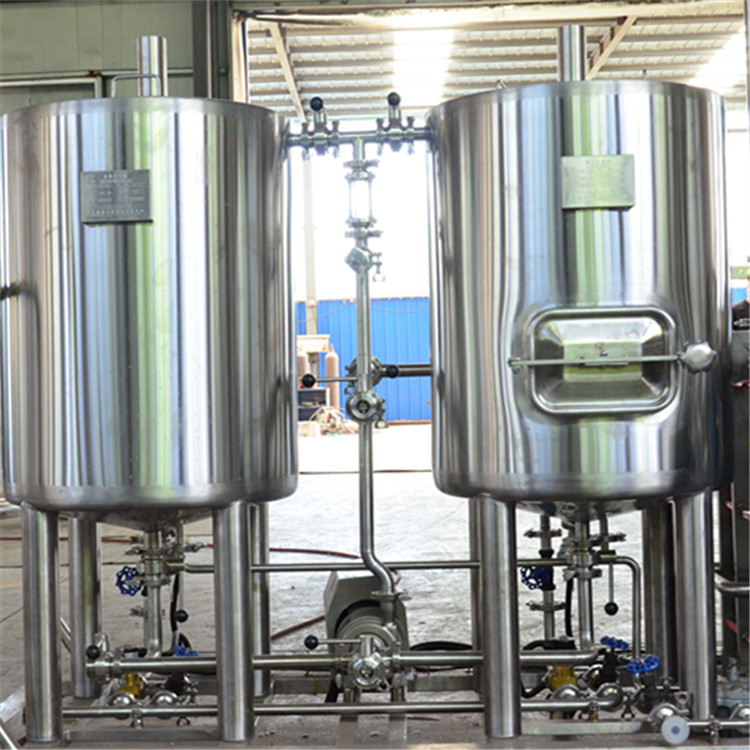

How to make craft beer-mash system
| Model | Output | Combination mode | Voltage | Heating mode | Material | Scope of application | Control mode |
| 100L | 100L/batch | Two vessels brewhouse | 380V/220V | by steam,by electricity,by fire | SUS304/316L | Hotel、wine bar.restaurant etc. | Semi automatic / automatic |
| Three vessels brewhouse | |||||||
| 200L | 200L/batch | Two vessels brewhouse | 380V/220V | by steam,by electricity,by fire | Hotel、wine bar.restaurant etc. | ||
| Three vessels brewhouse | |||||||
| 500L | 500L/batch | Two vessels brewhouse | 380V/220V | by steam,by electricity,by fire | Hotel、wine bar.restaurant etc. | ||
| Three vessels brewhouse | |||||||
| 1000L | 1000L/batch | Two vessels brewhouse | 380V/220V | by steam,by electricity,by fire | Hotel、wine bar.restaurant etc. | ||
| Three vessels brewhouse | |||||||
| Remark | The above models can be customized according to the requirements | ||||||
Saccharification system is the core of brewing beer. Saccharification is mainly composed of four steps: saccharification - Filtration - boiling - whirlpool , which are completed by several containers. The above four steps are called several device combinations.

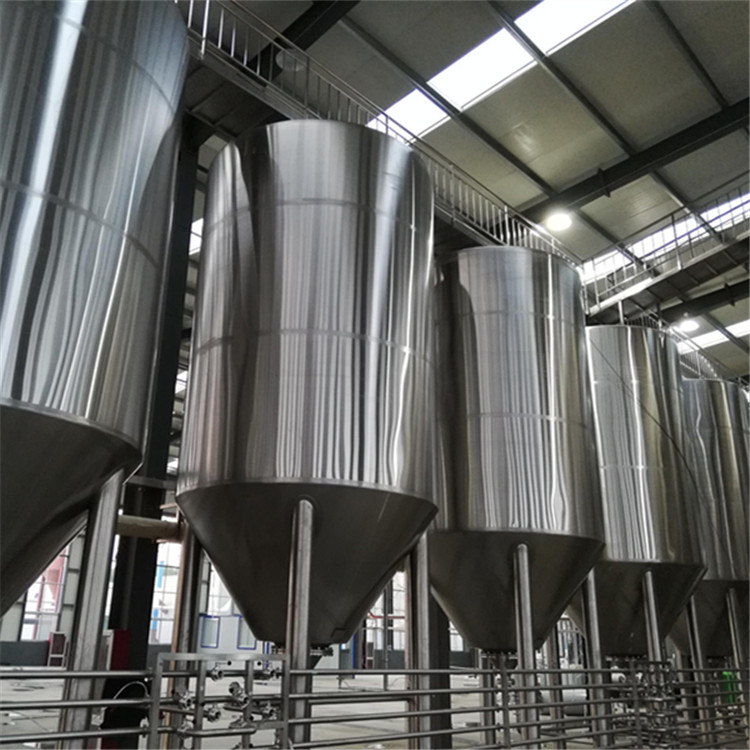

How to make craft beer-fermentation system
Fermentation uses yeast to convert the sugar in wort into alcohol and carbon dioxide。 The fermentation system is mainly composed of fermentation tank. Wort is fermented into beer in a fermentor. Fermentation tank has cooling function and heat preservation function. From the inside to the outside of the fermentation tank: inner tank, cooling jacket, thermal insulation layer and outer skin. The control system controls the temperature of beer in the fermentation tank according to the fermentation set temperature. The refrigerant of the refrigeration system is cooling medium.
Commercial beer equipment is at the heart of the modern brewing industry. This article will look at 2000 liter commercial beer equipment, a moderately sized brewing system suitable for small to medium sized bars, restaurants and breweries. We'll learn about its key components, operational processes, and the business considerations associated with them.
More >>
Brewing system: The Restaurant Nano Brewery Equipment brewing system is the heart of any brewery, and a nano brewery is no exception. Restaurant Nano Brewery Equipment typically consists of a mash tun, brew kettle, and fermenter. The size of the brewing system will depend on the amount of beer you plan to brew, but for a restaurant nano brewery, a 1- or 2-barrel system is common.
More >>
Craft brewery equipment is widely used in medium breweries and beer pubs. It can brew pale lager, amber lager, dark lager, ale and etc at proper temperature with different raw material.
More >>668.jpg)
A complete set of 500L beer equipment consists of malt crushing system, saccharification system, fermentation system, steam system, refrigeration system, CIP cleaning system, pipeline system, etc. 500L brewing beer equipment is generally used in commercial, restaurants, bars, barbecue shops and other places.
More >>
100L beer equipment can be used in home brewing and business. Each batch can produce 100L beer, and two batches can be made every day, up to 200L beer. If you are at home, you can produce beer every few days. If it is commercial, first of all, it is necessary to determine how many liters of beer are produced a day. The 100L beer equipment can produce up to three batches a day, but considering the labor intensity, it can produce up to one or two batches a day. The number of fermentation tanks is determined according to the amount of beer produced.
More >>
Small beer equipment is generally divided into two types, one is small household simple equipment, and the other is commercial beer equipment. Small household simple equipment generally refers to 30l-100l, with small floor area, convenient operation and relatively simple technology. Commercial beer equipment generally refers to 300l-2000l beer equipment. Now the popular fine brewing beer equipment in the market is made with this equipment.
More >>

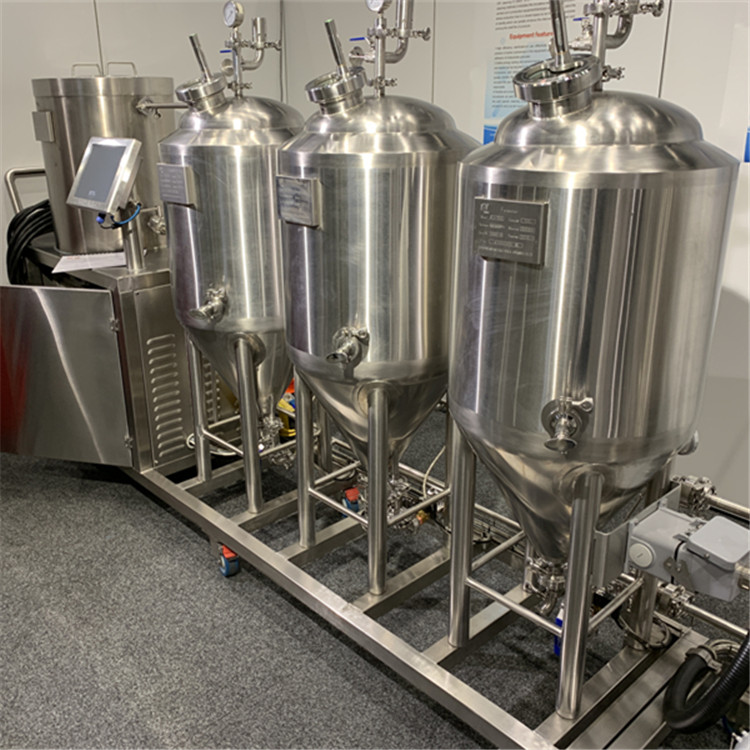

The 100L micro beer equipment belongs to a small beer brewing system. Small space, high degree of automation, simple and easy to operate. The mash process is electric heating, which is generally equipped with two device specifications (mashing+lautering + boiling+whirlpool), with ice water tank, plate heat exchanger, wort oxygenator, wort pump, etc; The fermentation process is automatically controlled by PLC, and 6 fermentation tanks are generally configured according to the standard. It belongs to self entertainment beer brewing equipment.
