Germany quality 2000L 15BBL stainless steel commercial beer brewing system ZXF

2000L 20HL Mirror SS304 Steam heating 2 vessel automatic beer brewing machine is often used in small breweries or bars. The system consists of two brewhouse vessels---Mash/Lauter Tun and Kettle/Whirlpool Tun. Mashing and lauter process are worked in one tank, and the kettle and whirlpool process are worked in one tank,this configuration can save brewery cost and floor space.

This system usually brews one batch per day. If the second batch is required,it will need at least 14 hours more. This system can cope with a temporary increase in production but not suitable for planned multi-batch brewing.

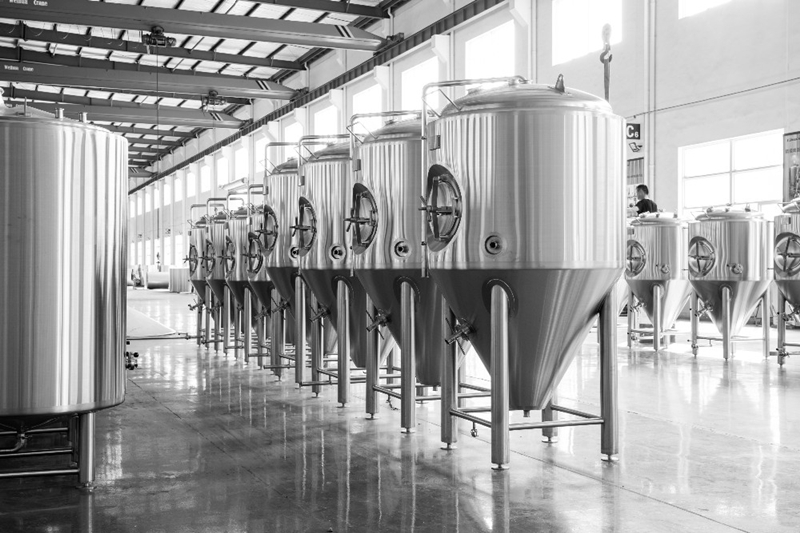

According to different fermentation time, usually 6 sets of 4000L fermenters or 12 sets of 2000L fermenters can be configured. 4 sets of 4000L fermenters and 4 sets of 2000L fermenters can also be configured to meet the needs of various beer types.

This brewery system also needs to be equipped with a complete automatic control system, malt milling system, CIP system,glycol cooling system, steam heating system, air system, etc.

1) Passed ISO TUV SGS production process inspection, Tiantai beer equipment meets the GB CE PED ASME standard

2) Five years guarantee for a long time sales service

3) Local service in EUROPE, AUSTRALIA ETC

4) 0 trade risk verified by more than 1100 breweries

5) Direct food grade completely certificated 304 stainless steel

1) Two vessels with hot water tank, 2000L per batch, the first batch takes about 8 hours, and two batches in 14 hours is allowed ;

2) Completely SUS304 stainless steel material, easy to clean; Red copper outside can also be used to adapt to special environments such as bars;

3) Steam heating and kettle process;

4) The wort is cooled by city water and -5 degrees glycol water in two stages, and it can also be designed to cool in a single stage;

5) Brewhouse heating temperature and fermentation cooling temperature are automatically controlled, manual control can be switched at any time;

6) Automatic valve control, humanized operation, low investment, high cost performance; PLC automatic control ;

7) Filling system can fill stainless steel beer barrels, glass bottles or cans
