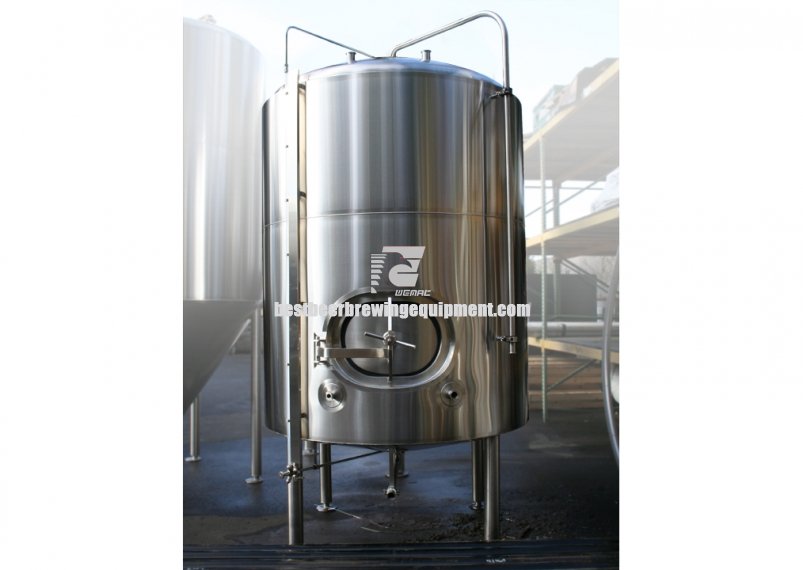

3bbl jacketed brite tank

3bbl jacketed brite tank technical parameter

Total capacity:3.75bbl effective capacity:3bbl
Note: 1hl=100liter; 1Gallon=3.7854liter; 1BBL(Barrel ) =117Liter
Dimension: Φ1000mmx2000mm
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dish head,cylinder,oval, ball or cone at the end ;60 degree cone bottom(adjustable);
Dimple jacket or dribbling cooling ,PU insulation,TH=80-100mm
Withstand voltage of tank is 4bar;
Tank equip with lifting leg,electromagnetic valve or mechanical pressure regulating valve,manhole(top or side),
sample valve,temperature sensor, adjustable leg,beer mouth, discharging outlet,coolant inlet and outlet,
CIP inlet and outlet,,360 degree,cleaning ball, pressure gauge.
Option:CO2 filling device With titanium rod distributor;level gauge

3bbl jacketed brite tank characteristics

◆100% TIG welding with pure argon gas shield；
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,
no material residue and easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
◆3D technology application make customers understand tank from different angles
