Code | Name | No. | Component | Specifacation | Quantity/unit | Origin | Technical parameter description |
1 | Malt crusher system
| 1 | Malt crusher | XW-G1（XW-TG/BXG-100） | 1 set | China |
1. Type: double roller type
2. Material: carbon steel spray paint
3. Voltage 380v, 3PH, 60hz, 0.55KW
4. The speed of fast roller is 700 rpm/min
5. Dimensions (H*L*Wmm): 950*600*350
6. The weight of the whole machine is about 60KG.
|

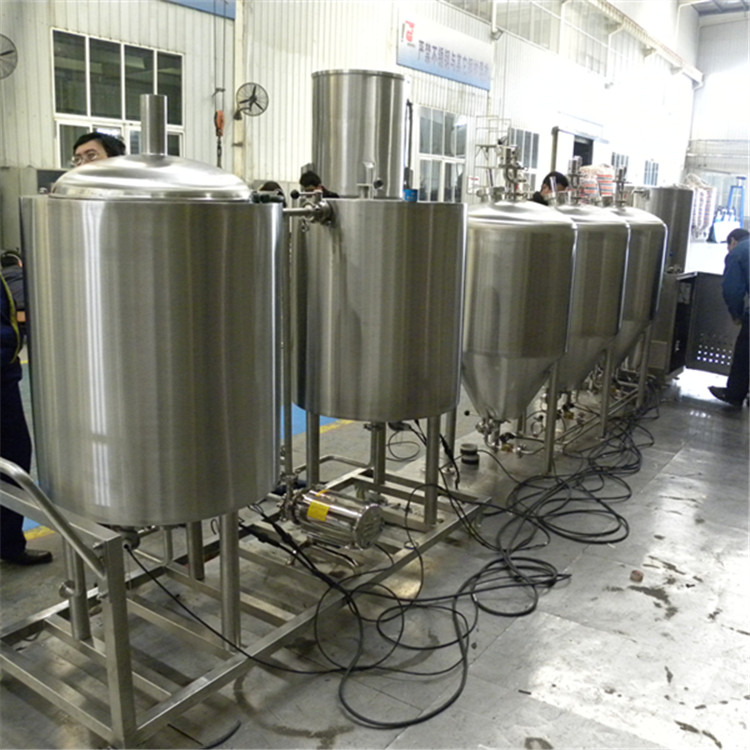

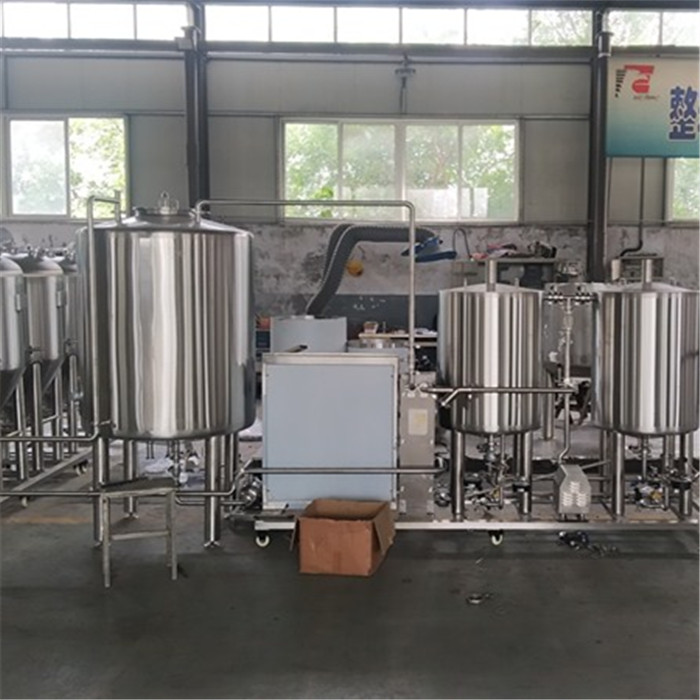

2 | Mash system | 1 | Mash/Lauter tun | 100L | 1 set | WEMAC | 1. The inner tank and the outer material are made of SUS304, the thickness is 3mm, and the outer material is 2mm thick. Dimensions: D=650, H=1660mm;
3. Heat-resistant polyurethane foam, with an insulation layer of 75mm thick.
4. Filter side feed
5. The upper part of the filter is designed with an open cover and the side outlet; the upper steam discharge pipe has a diameter of ￠63. Configure CIP cleaning ball.
6. Filter plate: milling. The material is SUS304, the opening rate is about 10%; the surface is bright and flat; the part can be opened, easy to clean, and it is not deformed; the distance between the filter plate and the bottom of the pot is between 2-5cm, and the bottom of the tank is equipped with a bottom cleaning device, uniformly distributed No less than 3.
6. The precision of platinum resistance is ±0.3 degrees Celsius, and the temperature range is 0-150 degrees Celsius.
7. The interior of the equipment is highly polished, and the welds have been finely processed, without uneven deformation, etc.; the equipment has a beautiful appearance, and the pipeline layout and opening positions meet the requirements of operation, on-site installation and visits. |
2 | Kettle/Whirlpool tun | 100L | 1 set | WEMAC | 1. The inner liner and outsourcing material is SUS304, the thickness is 3mm, and the outsourcing thickness is 2mm. Dimensions: D=650, H=1660mm;
2. Electric heating. The heating meets the temperature rise of 1-1.5 degrees per minute.
3. Heat-resistant polyurethane foam, with an insulation layer of 75mm thick.
4. The diameter of the upper steam discharge pipe is ￠63.
5. Rotary sink counterclockwise tangential feeding, the feeding port is 1/3 below the liquid level; it has a liquid level tube, a breathing hole, and a quick-install manhole on the side. There is a bypass between the suspension discharge pipe and the sewage pipe. |
3 | Plate heat exchanger |
| 1 set | WEMAC | 1. Two-stage cold, suspended type. The design pressure is 1.0mpa and the design temperature is 150 degrees.
2. The frame material is covered with stainless steel, and the plate material is 304.
3. The combination of heat exchange area and process meets: the wort drops from 98 degrees to 8-10 degrees. One section enters normal temperature tap water, one section enters -5°C refrigerant.
4. The flow rate of the wort inlet, cooling water and refrigerant inlet are all controlled by ball valves. |
4 | Wort oxygenator |
| 1件
1 pic | WEMAC | Venturi principle material is 304, oxygenation is uniform and meticulous, with glass sight glass, oxygenation status is visible. |
5 | Wort pump |
| 1 set | China | 1. The pump body and impeller are made of SUS304, which meets the requirements of sanitary pumps and is a well-known domestic brand.
2. Frequency conversion control, flow rate 1T/h, head 15 meters. |

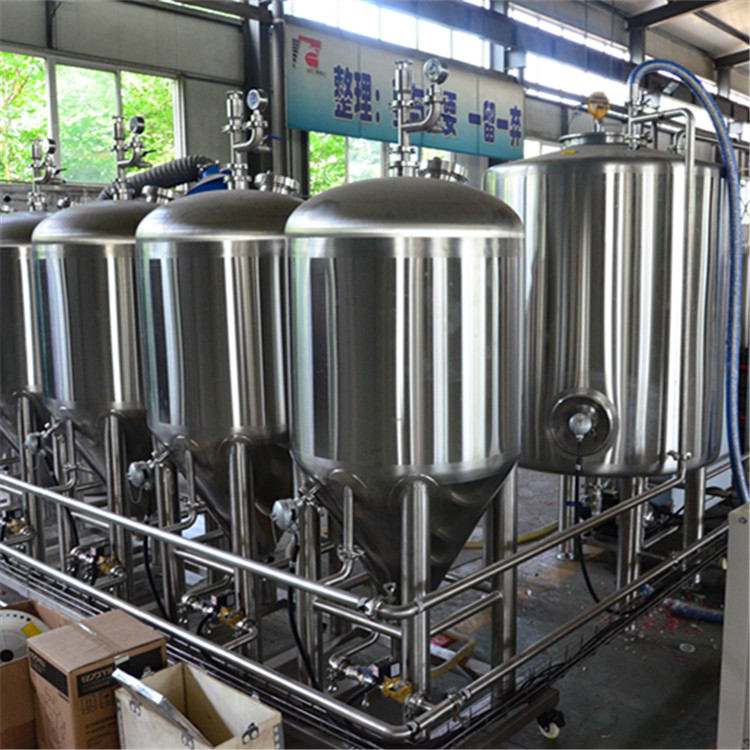

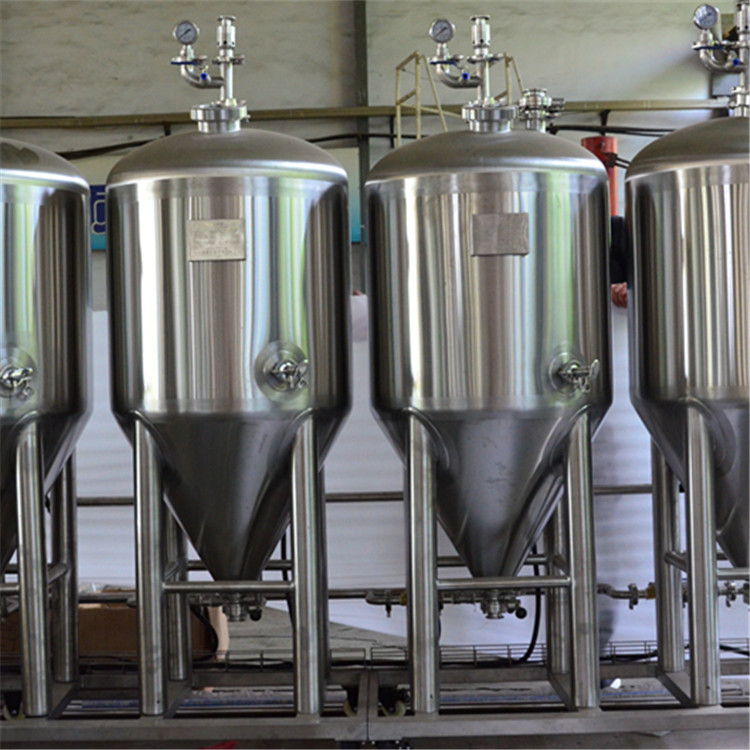

3 | Fermentation system | 1 | Fermenter | 100L | 3 sets | WEMAC | 1. The inner tank is made of SUS304, 3mm thick; the outer material is SUS304, 2mm thick. Dimensions: D=650, H=1500;
2. Miller board is made of SUS304 and 1.5mm in thickness. The cooling area of the cylinder is about 40% of the surface area of the cylinder, and the cooling area of the cone is about 50% of the surface of the cone.
3. Polyurethane foam insulation, thickness 75mm.
4. The tank can withstand a pressure of 2.5bar.
5. Compression-resistant design of cone under 60°.
6. 20% empty capacity. The upper part of the cylinder of the tank is flush with the bottom of the washing ball,
7. The internal roughness is ≤0.4um, and there is no deformation, no scratches, and the weld is highly polished. The inner cylinder is mirror polished.
8. The upper dish-shaped head.
9. The tank body is equipped with temperature sensor, sanitary sampling valve, pressure gauge, breathing valve, the bottom has a sewage outlet, and the top is equipped with a search light mirror DN100.
10. The bottom drain pipe Ø38. |
4 | Cooling system | 1 | Chiller | 3P | 1 set | China | 1. Unit type: air-cooled chiller, voltage level AC380V, 50hz, total input power 2.4KW.
2. The capacity meets the requirements, the outlet water temperature is -5℃, and the nominal cooling capacity is 6.97KW.
3. Dimensions (L*W*Hmm): 990×760×842
4. Outdoor installation, ambient temperature <35℃.
5. Compressor: fully enclosed scroll type, refrigerant R22. |
2 | Alcohol water tank | 200L | 1 set | WEMAC | 1. The material is SUS304, the inner liner is 2mm thick, and the outer shell is 2mm, with wire drawing treatment. Dimensions: D=760, H=1570;
2. Polyurethane foam insulation, thickness 80mm.
3. The upper cone head and the outer cone heat preservation head.
4. Tank body is equipped with temperature sensor (-10-150℃, 4-20mA signal, L=200mm, 50.5 chuck connection, brand Fred);
5. There are liquid outlet and sewage outlet at the bottom
6. The internal 2B surface of the equipment, pickling passivation treatment, external surface drawing treatment, beautiful appearance, pipeline layout, opening position, etc. meet the requirements of operation, site installation and visit. |
3 | Cooling water pump | Flow 3T/H, head 24M | 1台
1 set | CNP,China | Alcohol water circulation pump, the capacity meets the requirements.
380V, 50hz |
5 | Electric sysstem | 1 | Automatic fermentation control | Joint control of imported brand PLC and 10-inch touch screen | 1 set | WEMAC | 1. A special fermentation process that realizes two-stage heating and three-stage cooling;
2. Different fermentation curves can be preset for different beers to meet different fermentation processes.
3. The program can achieve any cooling speed setting within 2-24 hours, so as to prevent freezing in the tank and protect the yeast, and meet the normal progress of the fermentation mechanism.
4. Unattended fermentation process can be realized.
5. The fermentation temperature, time and cycle of each stage can be set and modified at will.
6. The system capacity meets one fermentation cycle. The system collects and summarizes data every 20 minutes, and can record all the data in a fermentation cycle.
7. Traceability.
8. The accuracy error is ±0.3℃.
9. It can realize remote monitoring and operation of mobile phones and computers (devices need to be connected to the Internet). |
2 | switchboard | SUS304 | 1 set | Mash, fermentation and cooling system share one 800*475*800 |
3 | Fermentation control solenoid valve | 1/2” | 5 pics | China | Material: Copper.
diaphragm fluorine rubber, DC24V.
2 spare |
4 | Temperature Sensor | Quick fit 51 chuck | 7 pics | Fred | 7 fermentation tanks and refrigeration: -10-50℃, 1 each for mash and boiling: 0-150℃;
One wort temperature detection: 0-150℃. The length of the probe is designed according to the drawings. |
5 | Wire and Cable |
| 1 set | China | Use shielded wire for signal wire |
6 | Threading tube |
| 1set | Stainless steel grid bridge, the quantity and size meet the requirements of on-site installation. |
6 | frame | 1 | For mash system and fermentation system | / | 2 sets | WEMAC | 1. Use 304 material
2. With PU load-bearing wheels, two of which have brakes
3. The overall polishing treatment of the equipment
4. Overall dimensions (L*W*Hmm) meet the requirements of equipment installation;
5. 1 for mash system,2 for fermentation system |
7 | Pipeline and accessories | 1 | Mash pipeline | Φ32 | 1 set | WEMAC | Mash all valves and pipelines. |
2 | Cooling pipeline | Φ25 | 1 set | Use stainless steel pipes, 3 cm rubber and plastic sponge for heat preservation, external material coverd with PAP |
3 | Co2 dioxide charging and exhaust line
| Φ10 | 1set | Φ10 hose 50 meters |
