Micro beer equipment, also known as nano beer equipment, refers to 50l-300l small beer equipment, which is suitable for places with small output and limited floor area, such as small beer houses, bars, restaurants, experiments, etc. We provide free brewing technology and free technical consultants. If you are interested in brewing, start your way of brewing beer!
Product features of beer brewing equipment micro brewery 100l 200l:
1. Compact structure, small floor area, movable, convenient operation and simple maintenance
2. The fermentation tank is insulated with polyurethane, the thickness of the insulation layer is more than 60mm, and the density of the insulation layer meets relevant standards.
3. The operation and control adopts computer industrial control system to realize automatic control or semi-automatic control.
4. All equipment pipes are connected by quick installation, which is convenient for cleaning and maintenance in the production process.
5. Accessories and valves are well-known brands at home and abroad, which are durable.
6. Reasonable design, exquisite processing and beautiful appearance.
Configuration of beer brewing equipment micro brewery 100l :
Name | Specification | Qty | Material | Technical Parameters | |||

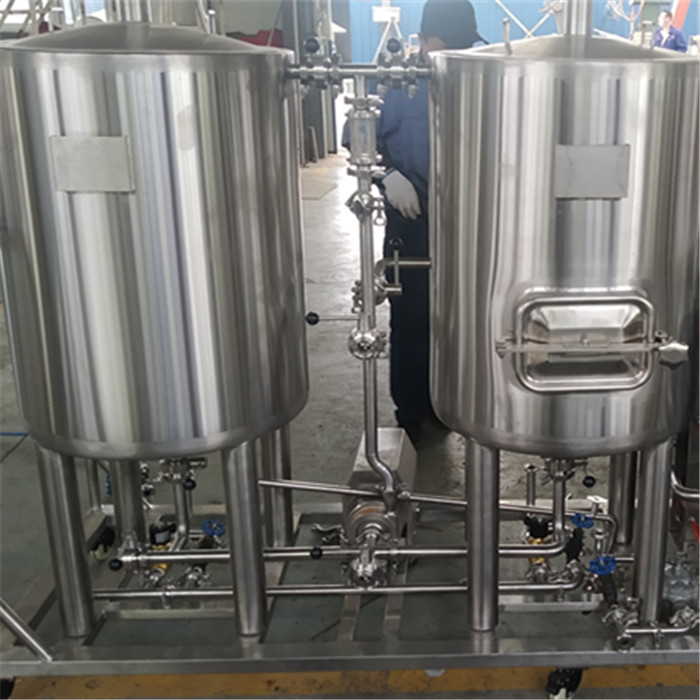

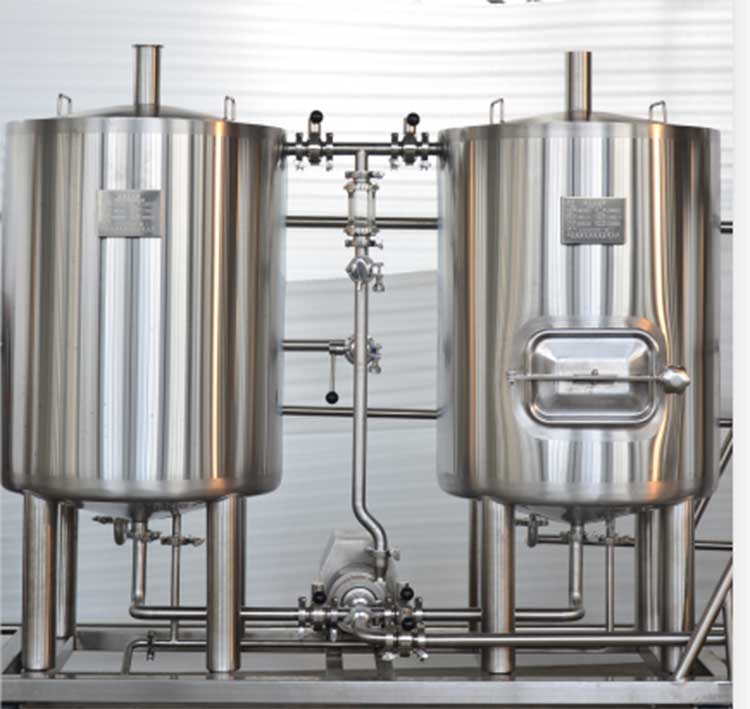

Mash system |
Main part |
01 |
Mash/Lauter tun |
100L |
1 |
Stainless steel | Dimensions: φ500×800; total volume is 120L; effective volume is 100L. Comes with temperature control and automatic heating. Spent grain spot |
02 |
Kettle tun |
100L |
1 |
Stainless steel | Dimensions: φ500×800; total volume is 120L; effective volume is 100L. | ||
03 |
Hot liquid tank
|
100L |
1 |
Stainless steel | Dimensions: φ500×800; total volume is 120L; effective volume is 100L. temperature control and automatic heating, with a coil tube to control the temperature | ||
01 | Malt milling | 100Kg/h |
1 | Carbon steel | Grinding disc type crushing, motor power 1KW. | ||
02 |
Wort pump | Flow 1m3/h, head 8m |
2 |
Stainless steel | 400V, 50Hz, 0.55kW, frequency conversion speed regulation; inlet φ38, outlet φ32 clamp connection | ||
03 | Plate heat exchanger
| BR0.1/5 1㎡ | 1 | Carbon steel | Two-stage 6-lead,; Ice water inlet and outlet G3/4, tap water inlet G1, tap water outlet φ25 clamp, wort inlet and outlet φ25 clamp | ||
Accessories | 01 | Mash pipeline | ISO:Φ38/Φ32 | 1 | Stainless steel | Sanitary stainless steel valves and pipelines, welded on one side and formed on both sides | |
02 | Wort Thermometer | WNG/WNY(0～100℃) | 1 | Glass/Stainless steel | Stainless steel metal casing thermometer | ||
04 | Measuring cylinder | φ32 | 1 | Stainless steel | L=350 | ||
05 | Saccharimeter | 10°、20° | 2 | Glass | / | ||
06 | Grain Harrow
| L=1300 | 1 | Stainless steel | / | ||

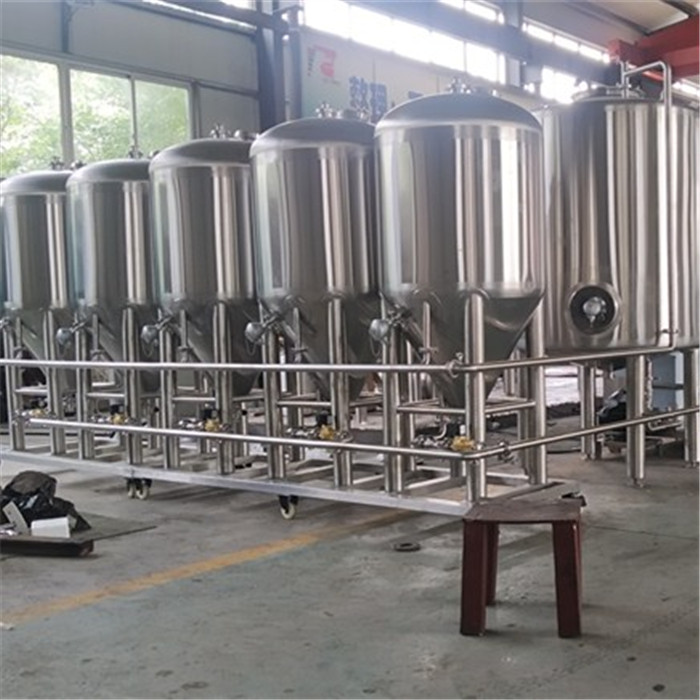

Fermentation system |
Main part |
01 |
Fermenter |
100L |
1 |
Stainless steel | Single tank with single control, overall size: φ650×1300; total volume 130L, effective volume 100L, insulation thickness 70mm; liner thickness: 2mm; liner drawing and polishing, outer 1.5mm oil grinding wire drawing board, welding seam polishing belt ; Equipped with sampling valve, positive and negative pressure safety valve, valve and accessories. |
Accessories | 01 | Food grade hose | Ф32 （Inside diameter） | 1 | Plastic | Matching hose connector, 5 meters | |
01 | Pipeline | Ф32 | PPR | / | |||
02 | Valve | Ф32 | stainless steel | / | |||
03 | Insulated pipe | Ф32 （Inside diameter） | Polyethylene | With PAP board and tape | |||
01 | Pipes, valves | Ф38/Ф32 | 1 | stainless steel | Sanitary | ||
Control system | 01 | Control cabinet | 500×200×300 | 1 | Spay Plastic | Mash | |
01 | Inflatable head | Ф32/φ10 | 2 | stainless steel | Clamp connect | ||
02 | Inflation hose | Ф12 | 5 | Tube | |||
The above parameters take 100L as an example. Different customer requirements are also different. We will design and configure it for you according to your specific needs.
Mash system accessories of beer brewing equipment micro brewery 100l 200l:
Mash system accessories |
