Steam Heating 500L Beer Microbrewery Equipment

Beer equipment introduction-Steam Heating 500L Beer Microbrewery Equipment

Craft brewery equipment is widely used in medium breweries and beer pubs. It can brew pale lager, amber lager, dark lager, ale and etc at proper temperature with different raw material.

Advantages of beer equipment-Steam Heating 500L Beer Microbrewery Equipment

1.High cost performance.

2.Good abrasion resistance materialcopper beer equipment.

3.We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.

4.Polishing accuracy up to Ra0.4μ m .

5.Strict tank pressure test.

6.Energy conservation and pollution emissions.

Heating method of 500L Beer Microbrewery Equipment

Three kinds of heating method are optional to choose,According to the customer's preferences and the energy supply situation at the brewery site, we can provide customers with a variety of heating methods, the characteristics are as follows:

1. Electric element heating,Use electric coils for heating. In a 500L beer brewing system, the usual power is 30-40Kw,Suitable for beer brewing systems below 1000L, the advantage is that it is not affected by energy supply, and the heating rate is high.

2. Steam heating,using the electric steam boiler/gas steam boiler etc.to generate steam.Using jacket for heating,compared with electric heating, steam heating has a wider application range, and heating is more uniform and stable.

3. Direct fire heating.Burners and fire boiler to generate steam jacket.

Scope of 500L Beer Microbrewery Equipment

All Complete Brewhouses Come With: Wort Pump, Hot Water Pump, Heat Exchange, Platform, Hop Back, Grant Tank, Butterfly Valves, Clamps, Gaskets, Oxygenate Device, Saccharometer,Wort Thermometer

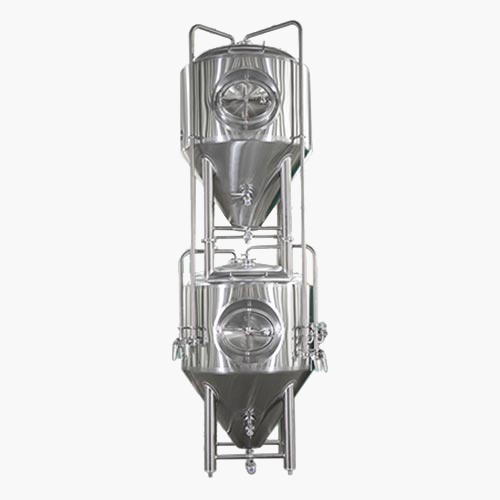

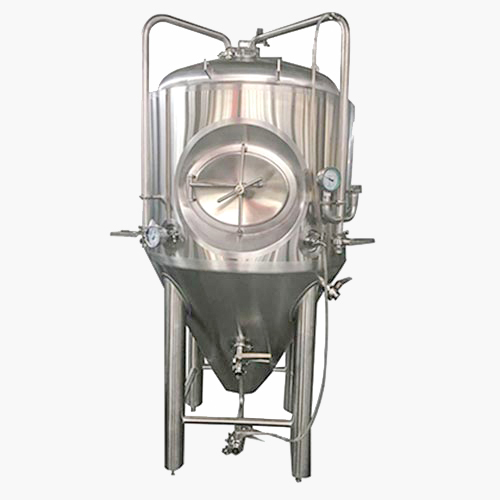

Fermenter is equipped with double L tube,one for cooling and the other one is the cleaning tube.pressure gauge,vent valve,PRV,

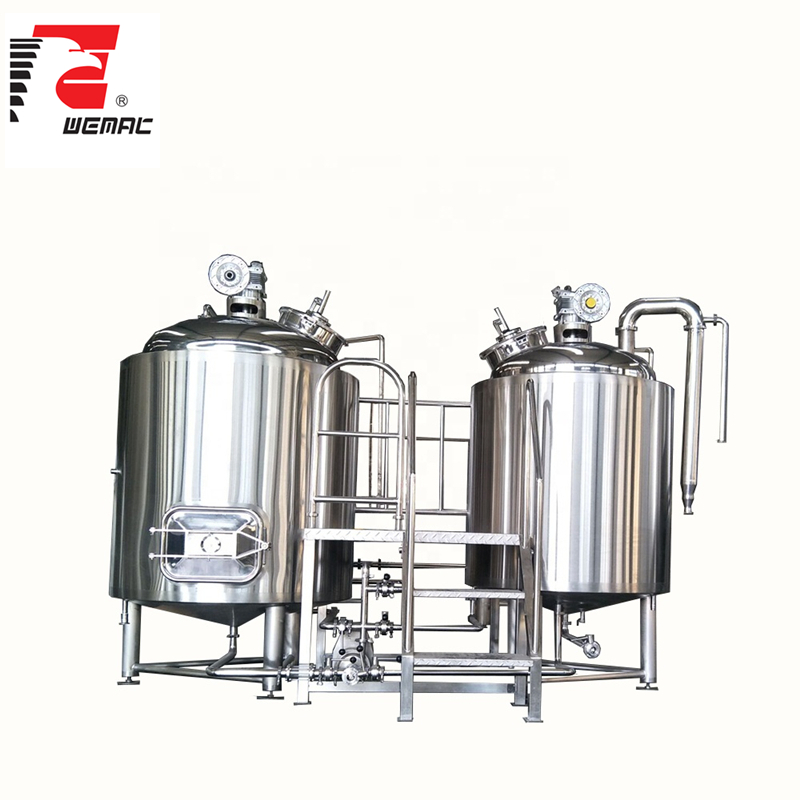

Standard 2 Vessel configuration with HLT and Plate Heat exchanger and 10 BBL Hot Liquor Tank.

All piping(except piping for HLT to mash-tun)

Mash/Lauter tun, Kettle/Whirlpool,

Work platform with stairs and railing

5 sanitary pumps,like mash pump,cooling pump,wort pump,hot water pump,CIP pump

brewhouse plumbing,valves,sight-glass,heat exchanger,rakes,all vessels on steam systems jacketed,

Motor,Gear box,Control Panel equipped with 4-5 VFD's,Thermocouples, PID controllers,Relays,Transformers,Grist Hydrator.

Recommended steam generator size 6-9 HP.

All pumps and rakes variable speed for superior fluid control.

The beer production capacity of the 500L beer brewing system can reach 1000L per day, which is suitable for small and medium-sized craft beer bars, hotels, and restaurants.
