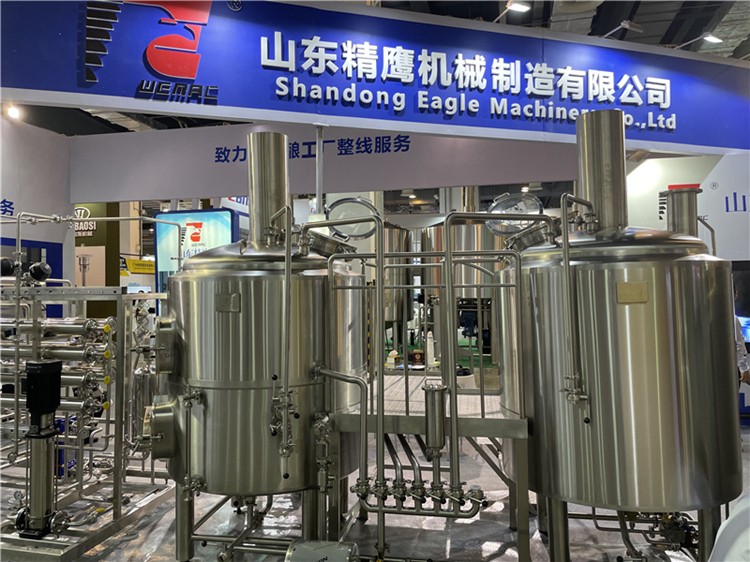

1000L two vessels craft beer brewhouse,steam jacketed heating,suitable to use in mini/microbrewery and beer brewpub.

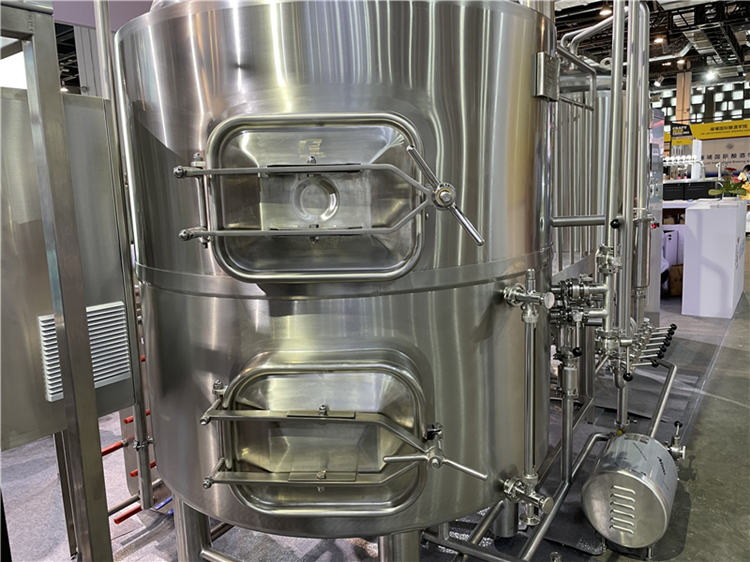

Name | Composition | Specification | Technical parameter |
Milling System | Malt Miller | 150kg/H | Double roller |
Carbon steel spray paint/Stainless steel | |||
Power:0.75Kw | |||
Mash system | Mash/Kettle Tun | 1000L | Material:SUS316L/SUS304/copper |
Interior Shell: 2B/mirror plate; TH=3mm | |||
Dimple, coil jacketed for steam heating,electric | |||
ABB stirring motor | |||
80mm rock wool for insulation | |||
Round glass manhole, dish head,with temperature | |||
Lauter/Whirlpool Tun | 1000L | Material:SUS316L/ SUS304/copper | |
Interior Shell: 2B/mirror plate; TH=3mm | |||
80mm rock wool for insulation | |||
Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass | |||
Lauter plate: milling | |||
Racking device,positive turn cultivating spent grain,reverse discharging spent grain | |||
Tangential whirlpool inlet | |||
With cleaning tube, with standard washing ball,cleaning pipeline ISO32 | |||
Hot liquid tank | 1000L | Material:SUS316L, SUS304,copper | |
Interior Shell: 2B/mirror plate; TH=3mm | |||
80mm rock wool for insulation | |||
Top dish head, bottom conical head, round glass manhole | |||
Dimple, coil jacketed for steam heating,electric heating tube, combustion chamber | |||
With a cleaning tube, with a standard wash ball, cleaning pipeline ISO32, overflow port,temperature sensor | |||
Heat exchanger | SUS304,Two stage cooling | ||
Wort oxygenator | SUS304, venturi principle with sight glass | ||
Yeast Adding Tank | 10L | With valve, sight glass, pipe fittings, hand-held | |
Wort pump | China top brand, Sanitary SUS304 | ||
Hot liquid pump | China top brand, Sanitary SUS304 | ||
Pipe and fittings | As design | Completely SUS304,including platform and steps | |
Energy system | Steam heating | ||
Fermentation system | Fermenter | 1000L | Material:SUS316L /SUS304 |
Interior Shell: 2B/mirror plate; TH=3mm | |||
80 mm PU for insulation | |||
Dish head,cylinder,60 degree cone bottom(adjustable) | |||
Top or side manhole, | |||
With electromagnetic valve or mechanical pressure regulating valve,sample valve,temperature sensor, adjustable leg,Rotating | |||
Option:Dry hop mouth,CO2 filling device With titanium | |||
Filtering system (optional) | Candle diatomaceous earth filtration | 1000kg/hr | Power:1Kw |
Filter Area: 0.8M2 | |||
SUS304 | |||
Fermentation system | Bright beer tank | 1000L | Material:SUS316L or SUS304 |
Interior Shell: 2B/mirror plate; TH=3mm | |||
80 mm PU for insulation | |||
Dish head /bottom,cylinder | |||
Top or side manway | |||
With electromagnetic valve or mechanical pressure | |||
Cooling system | Chiller | 5Px1PCS | Cooling Capacity: 6364Kcal |
Installed Power:4.86kw | |||
Refrigerant: R22 | |||
Noise:70-80db | |||
Coperland compressor | |||
Ice Water Tank | 1500L | Insulated conical top and sloped bottom | |
Ice water pump | 3M3 | Sanitary SUS304, VFD control | |
Pipeline and fittings | As designed | SUS304 | |
Control system | Mashing and fermentation process Controlling | Floor type | Panel instrument digital |
PLC control with touch screen for special | |||
CIP System | Acid Tank | 50L | SUS304 |
Alkali Tank | 50L | SUS304 | |
CIP Pump | 3M3 | Flow:3T Lift:24 |
Application scope and advantage of 1000L microbrewery beer brewhouse system
1000L Brewpub Beer Brewing Systems product advantage
● WEMAC supply beer brewing system with turn-key project.
● WEMAC provide beer equipment with free consultation,3D design,free installation,training.
● Three years warranty for the main equipment and spare parts.
● WEMAC beer machine brew different flavors of beer and several flavors of beer at the same time.
● WEMAC beer machine has beautiful appearance, it is convenient for customer visiting.
1000L Brewpub Beer Brewing Systems application scope:
Small and medium breweries, regional breweries,bars, hotels, beer houses, restaurants, clubs, farm breweries etc.
Fermenters of 1000L microbrewery beer brewhouse system
Fermentation tank is a pressure vessel for wort fermentation,Double-layer stainless steel plate,with a cooling jacket in the middle,Miller plate cooling,increase the turbulence of cold water and improve the cooling efficiency.Fermentation tank accessories include temperature sensor,thermometer,pressure gauge,sampling valve,manhole,sight glass,etc.The bottom is equipped with a beer outlet arm valve.
The tapered bottom,the insulation layer thickness is 80mm,the material is polyurethane foam,and the cold water pipe is pre-embedded.The cold water in the cold water tank is pumped into the jacket through the cold water pump to achieve effective cooling of the wort.
Advantages of using plate and frame press of 1000Lmicrobrewery beer brewhouse system

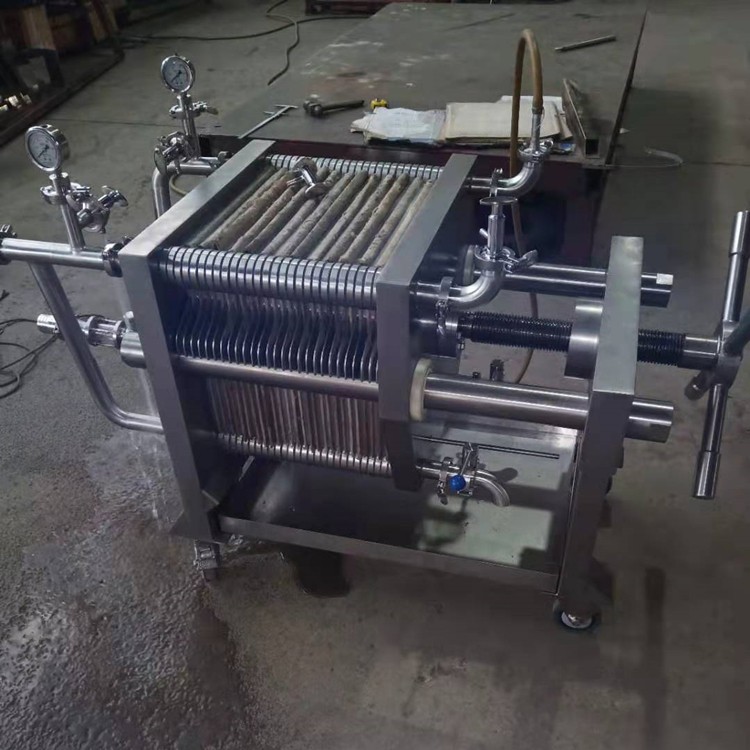

Plate and frame filter,made of high quality stainless steel,the function of the filter is to filter the spent grain after mashing.
High production efficiency, up to 12 batches per day; reduce labor intensity, filter, system CIP and filter cloth cleaning can realize automatic control; after the original wort filtration is completed, the membrane is blown and squeezed to squeeze the grain layer.
In the case of lees water,80% of the extract in the lees layer can be recovered,and the lees layer becomes thinner at the same time, which improves the efficiency of lees washing,and can reduce the wheat husk polyphenols,pigments,bitter substances and polymers in the malt that affect the flavor of beer.Proteins, fats,fatty acids,β-glucans and other substances enter the wort to ensure a good taste and high brightness of the wort.
Low investment, quick results,high equipment utilization and small floor space.The requirements for the main material malt are not high,the raw material crushing rate is relatively fine,the yield of extract is improved,the relative amount of auxiliary materials is increased, and the production cost is reduced.
Room dimension and height requirement of 1000L microbrewery beer brewhouse system
Processing | Fermenting Equipment |
Processing Types | Alcohol |
After-sales Service Provided | Field installation, commissioning and training |
Voltage | 3phase/380V/50Hz(customized) |
Dimension(L*W*H) | Capacity Request |
Weight | 5-8T |
Material | SUS304/SUS316L/ Copper |
Material thickness | 2-3mm |
Welding | TIG |
Control system | Pu/rock wool |
Energy source | Steam,electricity,direct fire |
Output capacity | 1000L |
Area request | 100㎡ |
Building height requirement | 2.5M |
Power supply | Single Phase/ 220(110, 240…)v/50(60)H |
Cooling way | Chiller |
Material | SUS304 |
Control | PLC,Touch screen |
For more detailed information about the 1000L microbrewery beer brewhouse system you want to know,feel free to let us know.
